Product Description for INVITAIC 120W Geometry V BIPV Module

Experience advanced solar technology with the INVITAIC 120W Geometry V Module from the Polychrome Series. Tailored to cater to both aesthetics and functionality, this module stands out with its vertical orientation and high energy output, ideal for diverse architectural integrations.

Key Features:

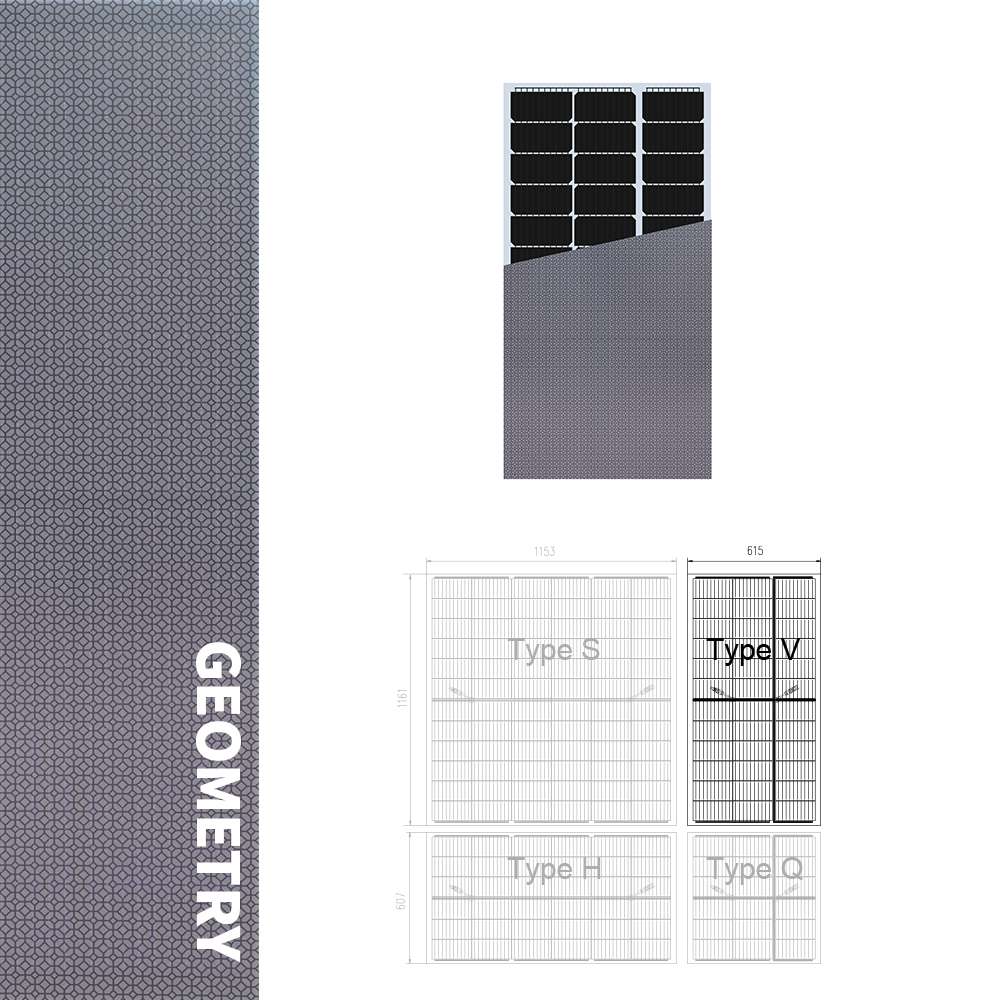

• Vertical Orientation: Measuring 615x1161x9 mm, the V type is designed to fit vertically, making it a perfect choice for narrow or tall sections of building facades.

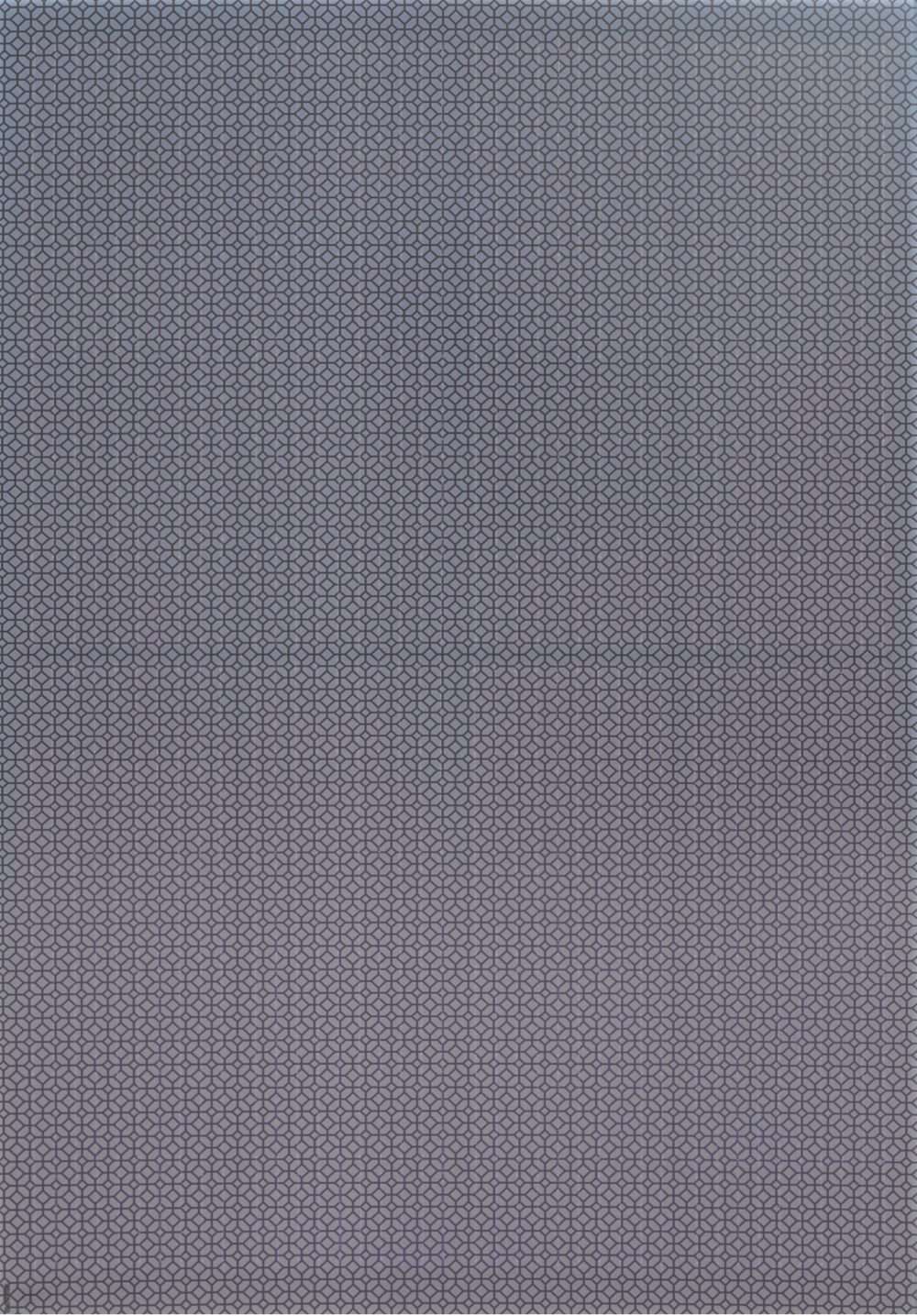

• Geometric Texture: Featuring a distinctive geometric pattern, this module not only enriches the visual appeal of structures but also effectively reduces glare, enhancing comfort in urban and residential settings.
• Frameless Dual-Glass Design: The absence of frames not only improves the visual continuity of facade designs but also increases the module’s durability and efficiency through superior light capture.
• Bifacial Energy Generation: Capable of generating power from both its surfaces, the Geometry V module maximizes solar intake and boosts overall energy production, making it exceptionally efficient.
• High Conversion Efficiency: Equipped with cutting-edge technology, it converts sunlight to electricity at higher rates, ensuring significant energy yield in proportion to its size.
• Robust and Reliable: Built to endure tough environmental conditions and mechanical stresses, it maintains excellent performance in low-light situations and offers both high mechanical strength and environmental resilience.
• Extended Warranties: Confidence in the product is supported by a 12-year product warranty and a 30-year linear performance warranty, offering peace of mind and assurance of long-term functionality.

Technical Specifications

Worldwide Sale

INVITAIC  FAQ

Q: What locations can your product be used in?

A: Building roofs, facades, balconies, fences, etc., serving as alternative construction materials.

Q: What are the dimensions of your product?

A：From 300 mm to 3600 mm. However, considering the cost-effectiveness and maximum photovoltaic conversion efficiency, we recommend an optimal size of approximately 1700*1100 mm. The single-sided glass thickness from 3.2 mm to 19mm: the minimum thickness for colored PV glass is 3.2 mm; Glass for full-black or transparent modules can be as thin as 2 mm.

Q：How are your products installed?

A：It depends, we can provide corresponding installation recommendations. However, we prefer to respect local preferences and allowable installation

methods. Any special requirements regarding product dimensions and cutting can be communicated directly to us, and we will accommodate accordingly.

Q：Do your products have frames?

A：We can provide anodized Alu frames for laminated modules within a thickness 7mm. Additionally, the frame color can be matched as closely as possible to the glass color. Thicker laminated modules are offered as frameless products.

Q：What colors of products can you provide?

A：Within our own unique color palette all colors and patterns have been tested for optimal hue and PV efficiency conversion. Custom colors and images can also be chosen for special projects, albeit incurring additional design and sample costs.

Q: Where are your products manufactured?

A：We have an independent research and production team, and currently, all products are manufactured in China, covering everything from aesthetic design to product production.
